Uniformly pale solids
A solid area is consistently lighter than the approved or acceptable sample across the printed width. Record whether every color is affected or only one station.
Press-side diagnostic / weak print
Why Water-Based Flexo Ink Prints Weak

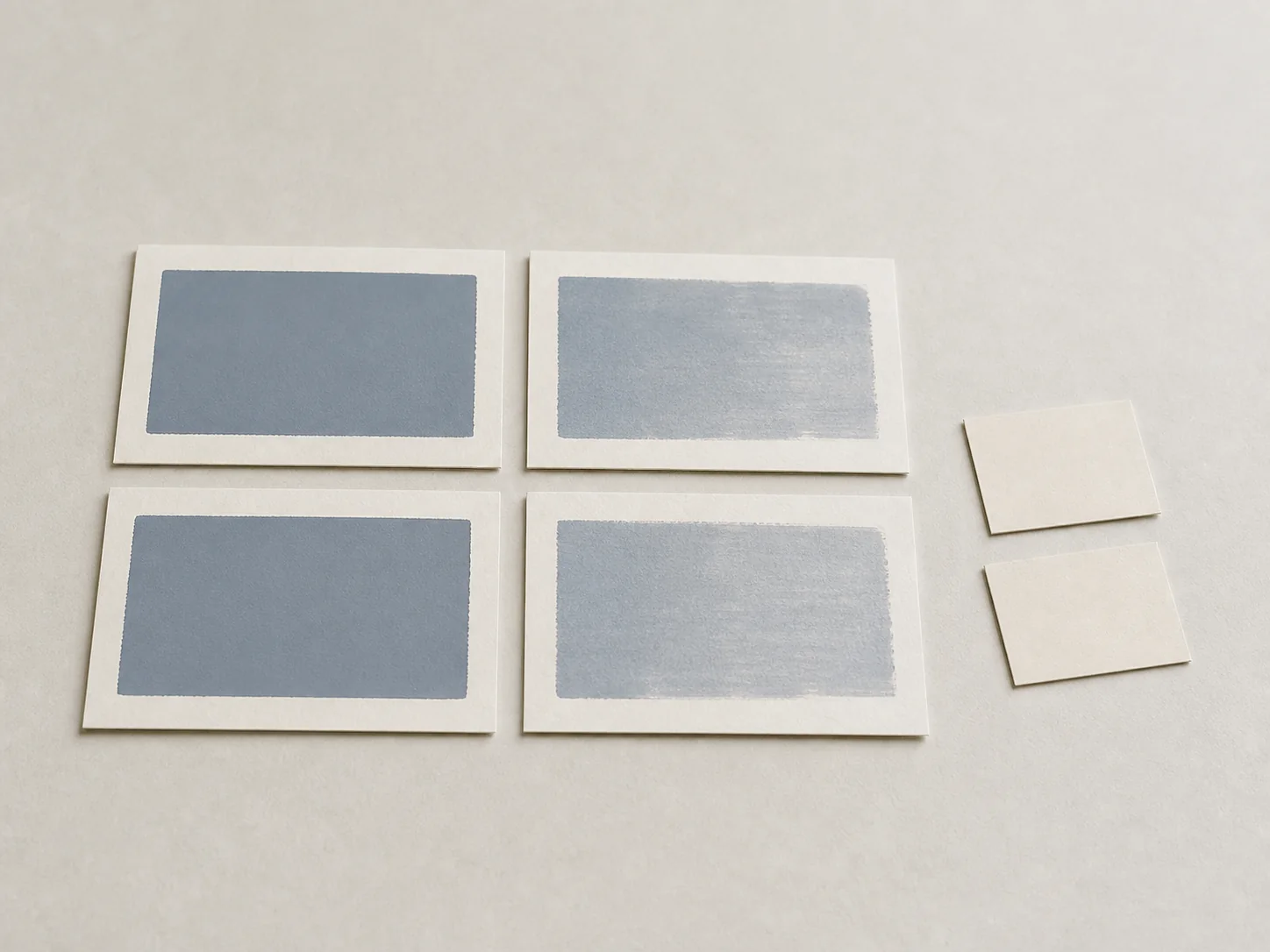

A weak flexo print does not by itself prove that the ink is weak. Compare the failing print with an approved or acceptable reference, then separate ink condition, transfer, plate and impression, substrate, dilution, and drying before selecting one controlled check.
Short answer
Weak color is a symptom, not a single diagnosis
Use this guide when a target or acceptable print already exists but the production print looks lighter, less dense, or less complete. If the target color has not yet been established, that is a color-matching task instead. The useful question here is which variable changed between an acceptable print and the weak print, and what evidence can isolate that change without creating several new ones.
Patchy or mottled coverage
The average color may look weak because coverage is uneven. Map grainy areas, pinholes, streaks, or repeating gaps instead of treating them as one density result.
Weakness that develops during the run
The first print is acceptable and later output fades, or the issue appears after a stop. Note elapsed time, circulation, additions, cleaning, and visible drying or settling.
One station or image area only
A localized pattern raises the priority of anilox, metering, plate, mounting, impression, circulation, or substrate contact checks before a formulation conclusion.
Classify the observation
Confirm which kind of weak print you are seeing
A pale solid, uneven transfer, off-shade color, and intermittent loss do not point to the same first check.
Low strength versus a known reference
The same target, image area, substrate, and evaluation method show a repeatable reduction in density or visual strength.
Uneven transfer rather than low strength
Mottle, pinholes, streaks, grainy solids, or repeating weak areas indicate that average color alone may hide a transfer or surface problem.
Off-shade rather than weak
A hue difference is not automatically a loss of ink film. Compare the approved target and the same viewing or measurement method before using this diagnostic path.
Continuous versus intermittent
Separate a condition present from start-up from one that follows a stop, longer circulation, an addition, a substrate change, or one press station.
Separate the variables
Review ink, transfer, plate, substrate, and drying as different systems
These groups are possible directions to inspect, not proof that any one cause applies to the current job.
Ink condition
Confirm product and batch identity, fresh versus working ink, mixing or settling, circulation time, contamination, rework, and every water or approved-additive addition. Use the exact supplier guidance for the product; do not infer a universal pH, viscosity, or dose.
Ink transfer and anilox condition
Inspect cleanliness, dried ink, wear, transferred-volume suitability, chamber or pan supply, doctor blade or metering condition, and whether one station behaves differently. Record the actual anilox identification and condition without substituting a generic specification.
Plate, impression, and press setup
Review plate condition, mounting tape, contact across the image, and pressure between anilox, plate, and substrate. Both too much and too little impression can disturb transfer, so a visual symptom alone does not define the correction.
Paper or board surface
Compare the printed side, surface uniformity, coating, absorbency, cleanliness, batch, and any material change. A more absorbent or irregular surface can make the same transferred ink film appear weaker or less even.
Dilution, drying, and ink-film balance
Review when water or other approved additions were made, whether ink is drying on the plate or anilox, airflow near transfer surfaces, dryer condition, press changes, and the amount of ink being transferred. These variables interact and should not be changed together.
Possible causes
Common directions to review without blaming one variable
| Symptom | Possible cause | First check | Evidence to record |
|---|---|---|---|
| Uniformly weak versus an acceptable print | Possible directions include working-ink condition, dilution history, transferred volume, metering, substrate receptivity, or formulation strength. | Use the same image area and evaluation method; compare failing and acceptable prints, then inspect ink identity and the transfer path. | Label both prints, substrate and side, ink product and batch, station, time, and any onsite reading with its method. |
| Weakness appeared after water, additive, or rework | The working ink may have moved away from its intended condition, but the addition is not proof of the only cause. | Review the complete addition sequence and compare a controlled fresh-ink sample under the supplier's approved method. | Record what was added, sequence, approximate amount, time, circulation period, and prints immediately before and after. |
| Coverage fades during the run or after a stop | Ink may be drying on transfer surfaces, settling, mixing unevenly, changing during circulation, or being affected by a local press condition. | Inspect plate and anilox at the time of failure and compare the print before and after a documented clean or mix check. | Keep the run timeline, stop duration, photos of surfaces, circulation observations, and sequential labeled prints. |
| Only one station or repeating area is weak | Anilox cleanliness or wear, metering, chamber supply, plate or tape condition, impression, or localized contact may be involved. | Compare the affected station with a stable station and inspect the repeating position before changing the ink formula. | Record station, anilox ID and condition, blade or metering check, plate and tape check, pressure review, and repeat pattern. |
| Mottle, pinholes, or patchy weak color on paper or board | Substrate surface or absorbency, uneven contact, contamination, foam, or inconsistent transfer may reduce apparent coverage. | Map the defect and compare the same ink on the job substrate, another area or side, and an acceptable batch when available. | Retain unprinted substrate, identify batch and printed side, photograph the defect map, and note whether foam or debris is present. |
| Weak print begins with a substrate or setup change | A change in surface, absorbency, plate mounting, anilox, metering, impression, speed, airflow, or drying may alter the observed ink film. | List the exact before-and-after changes and restore one documented baseline condition where safe and practical. | Keep paired samples and a change log; do not combine a substrate, anilox, pressure, and ink adjustment in one comparison. |
First checks
What to check before changing ink or press settings
First-pass review
Confirm the comparisonUse a real approved or acceptable print, the same image area, and the same visual or measured method. If no reference exists, document the present print as the baseline rather than guessing the target.
Record what changedList substrate, station, anilox, plate or tape, impression, dryer or airflow, ink batch, dilution, additions, circulation, and stop history before touching the process.
Inspect the transfer pathLook for dried ink, contamination, wear, unstable supply, metering faults, plate damage, or uneven contact. A visible mechanical pattern is higher-value evidence than a broad ink adjustment.
Confirm working-ink condition safelyIdentify fresh and working ink and follow the exact product supplier's approved method. Do not apply a competitor's pH, viscosity, additive, or dilution value to JLJ ink.
Information to provide
What the customer should send for a useful review
Substrate and surface
State the material type, grade or batch if available, printed side, coating or surface condition, and whether anything changed before the issue.
Press and flexo setup
Provide press type, affected station, print area, anilox identification and condition, metering arrangement, plate or tape, and the pressure checks already completed.
Ink identification and history
Share the product, batch or sample reference, fresh versus working condition, dilution, approved additions, rework, mixing, circulation, and timing.
Drying and operating context
Describe airflow or drying observations, the plant's actual press condition, recent setup changes, and whether ink is visible on the plate or anilox.
Labeled print evidence
Send clear photos or print samples of the weak result and an acceptable reference if available. Mark substrate, station, time, image area, and evaluation method.
Occurrence pattern
State whether the issue is continuous or intermittent, when it begins, whether it follows a stop or addition, and what changed immediately before it appeared.
Controlled trial path
Move from baseline to production confirmation
Trial sequence
- 01Preserve the baselineKeep labeled weak and acceptable prints, unprinted substrate, fresh and working ink identification, and the original setup record before corrections begin.
- 02Remove obvious uncontrolled faultsAddress contamination, dried transfer surfaces, unstable supply, damaged components, or undocumented additions under the plant's safe procedures before judging formulation strength.
- 03Choose one high-information changeSelect one check agreed with the responsible press or ink supplier, keep the remaining inputs fixed, and print a labeled comparison on the same substrate.
- 04Repeat with the same evaluationUse the same image area, timing, viewing or measurement method, and acceptance reference. A one-off improvement without repeatability is not enough to assign the cause.
- 05Escalate with the evidence packageIf the weak result persists after controlled process checks, send the paired samples, ink and substrate IDs, setup record, change log, and observations for supplier discussion.
Escalation decision
When to suspect ink and when to keep checking the press path
These signals change which investigation deserves priority. They do not establish a root cause without a controlled comparison.
When the ink itself deserves deeper review
- The weak result follows a specific ink sample or batch in a repeatable comparison while substrate, transfer, plate, impression, drying, and evaluation method remain controlled.
- Fresh and working samples differ under the same documented condition, or visible settling, separation, contamination, or strength variation remains after correct mixing and handling checks.
- The press and transfer checks do not explain the gap and paired failing and acceptable evidence is available for the ink supplier. This raises suspicion; it still does not prove the root cause by itself.
When to prioritize plate, anilox, substrate, or equipment
- The weakness is localized, repeating, station-specific, intermittent, or changes after cleaning, impression, supply, plate, tape, anilox, or substrate condition changes.
- The print shows mottle, pinholes, streaks, uneven contact, dried transfer surfaces, or a clear link to a new substrate side, grade, surface, or batch.
- A stable ink produces different results between stations or press conditions. Investigate the differing process input before changing several ink variables.
Related routes
Connect the issue to product and application context
FAQ
Why Water-Based Flexo Ink Prints Weak FAQ
Does weak flexo print mean the ink has too little pigment?
Not necessarily. Low visual strength can also follow dilution or working-ink condition, insufficient or uneven transfer, dried or worn anilox, metering, plate or impression, substrate surface, drying, or mixing. Compare a controlled failing and acceptable print before assigning the cause to formulation.
Can a plugged or worn anilox make water-based flexo ink print weak?
It can be one possible cause because anilox cleanliness, wear, and transferred volume affect the ink film delivered to the plate. Inspect and record the actual anilox and metering condition, and compare the result with other variables held stable.
How do pH, viscosity, and dilution history relate to weak print?
They help describe working-ink condition, but no universal values apply to every water-based flexo ink. Record the plant's method and the full addition history, then follow the current guidance for the exact product before making an adjustment.
What should I send for a weak-print technical discussion?
Send the substrate and printed side, press and station, ink and batch or sample ID, dilution and circulation history, anilox, plate and pressure checks, drying observations, what changed before the issue, and labeled weak and acceptable prints or clear photos.
Should I change the anilox or pressure before reviewing the ink?
Do not assume either is the first correction. Inspect the transfer and contact conditions, preserve the baseline, and choose one high-information comparison. A simultaneous anilox, pressure, and ink change prevents the result from identifying the cause.
Can fresh ink or an additive guarantee stronger print?
No. Fresh ink or an approved adjustment may be part of a supplier-reviewed trial, but the result still depends on the product, transfer, plate, impression, substrate, drying, and controlled comparison. Unrecorded additions can make diagnosis harder.
